Dakota Alert Dakota MURS Alert M538BS Base Station Transceiver

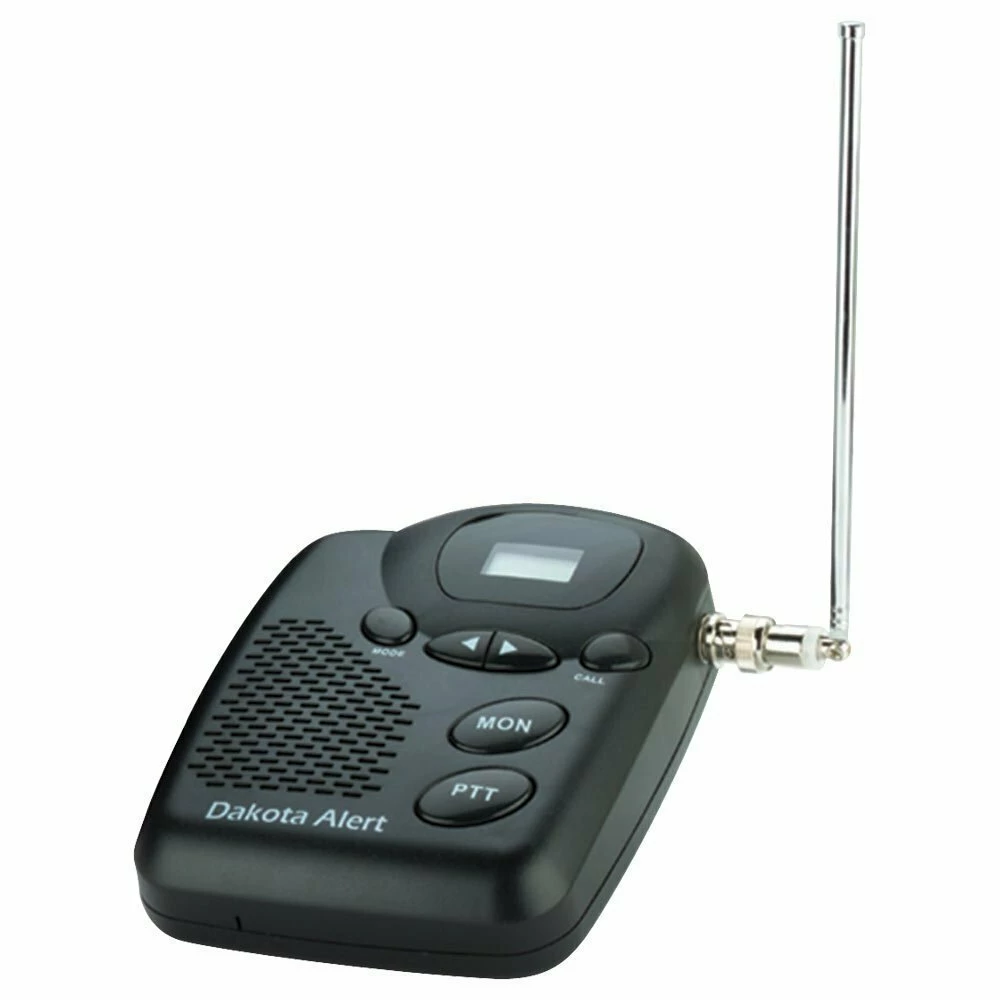

Dakota MURS Alert M538BS Basestation Transceiver

This device is designed to receive an alert signal from a MURS Alert transmitter as well as two-way communications from other MURS Alert portable or base station transceivers.

When the MURS transmitter is triggered, the base will announce a voice message indicating which zone has been triggered. Up to 4 zones are supported.

The M538BS has a normally open (NO) relay contact that will close while an alert signal is being received. This device is unique because it also operates as a two way intercom with other MURS transceivers The M538-BS is equipped to operate on 5 channels, with 38 sub channels. To communicate between two or more MURS radios, the main channel and subchannel must be set to the same values. The M538-BS also has 4 separate call tones that can be used to page other users before starting a conversation.

Alert is in English and twice repeats the phrase “Alert Zone One,” “Alert Zone Two,” “Alert Zone Three,” or “Alert Zone Four”

MURS Base station Transceiver Specifications

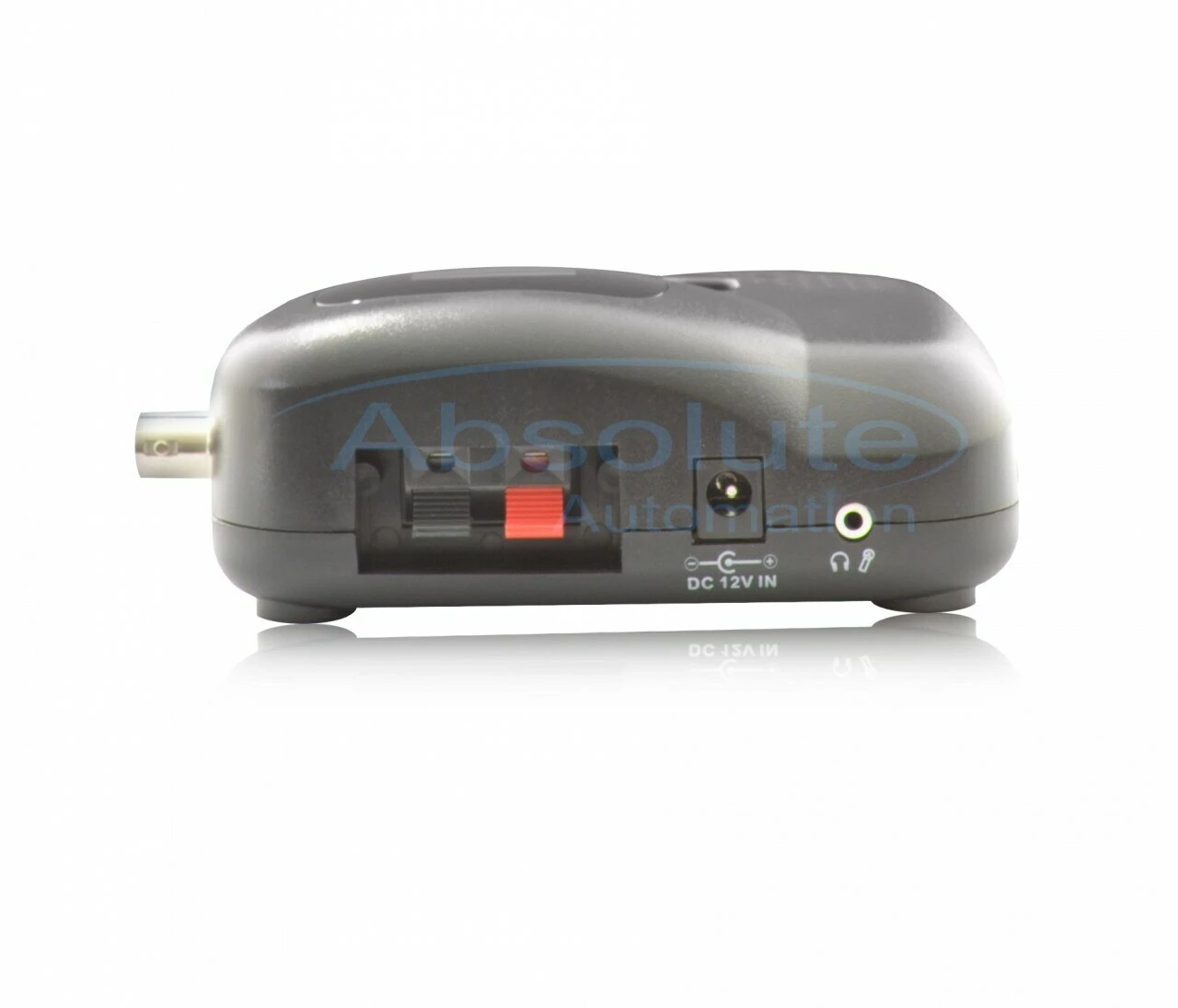

• Power Supply: 12V Adapter (Included)
• Base Station is equipped with an earphone jack for headsets

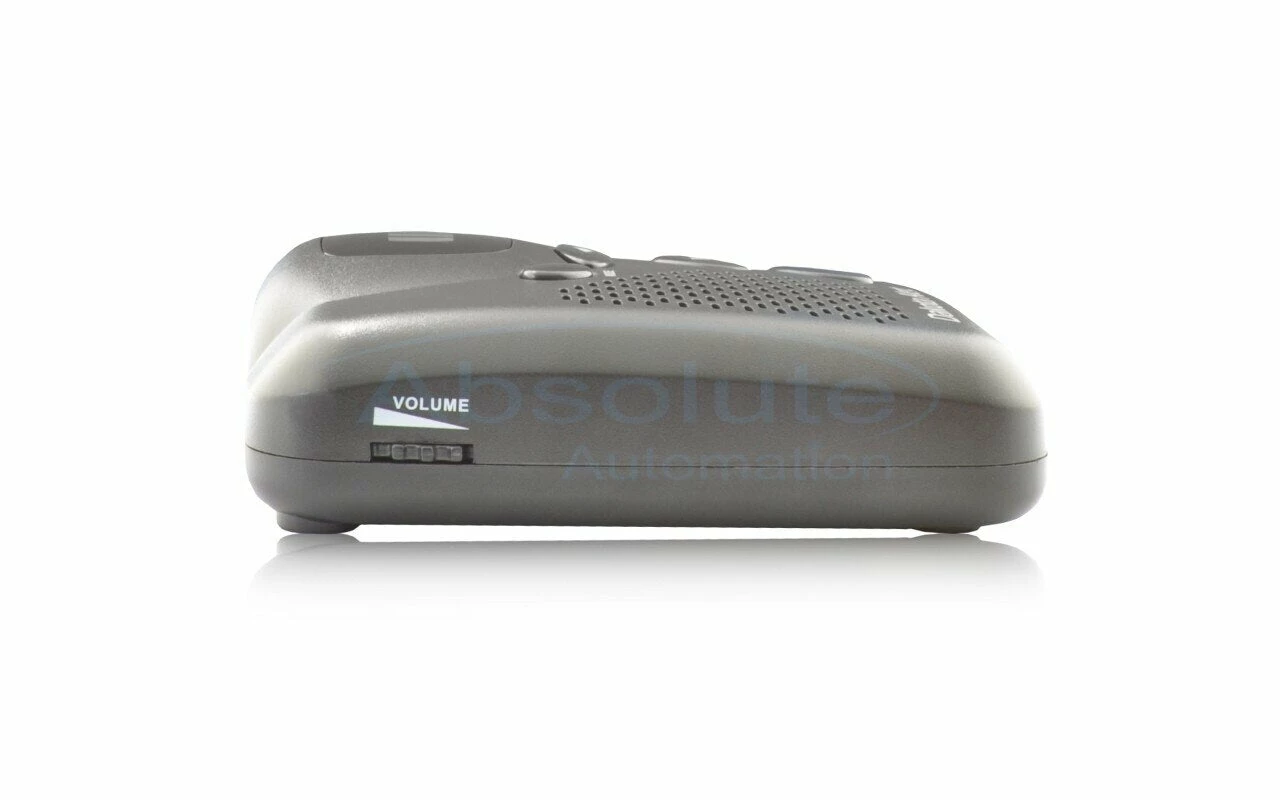

• Volume Control
• One Normally Open Relay – 5A @ 28VDC Capacity
• Wireless Range up to 3 or 4 miles*
• Frequency: 151.820 MHz – 154.600 MHz (Depending on Channel Chosen)

MURS Base station Transceiver Includes

• 1 x MURS M538BS Base Station Transceiver
• 1 x Power Supply for M538BS

MURS Base station Transceiver Support

Murs Base Station Manual
Murs Alert Voice Alert (Zone 1)



* Wireless range is open air direct line of sight without interference. Actual range will vary based on those conditions.
