Dakota Alert UTRE-4K-PLUS Long Range Wireless Doorbell With Indicator And Relay

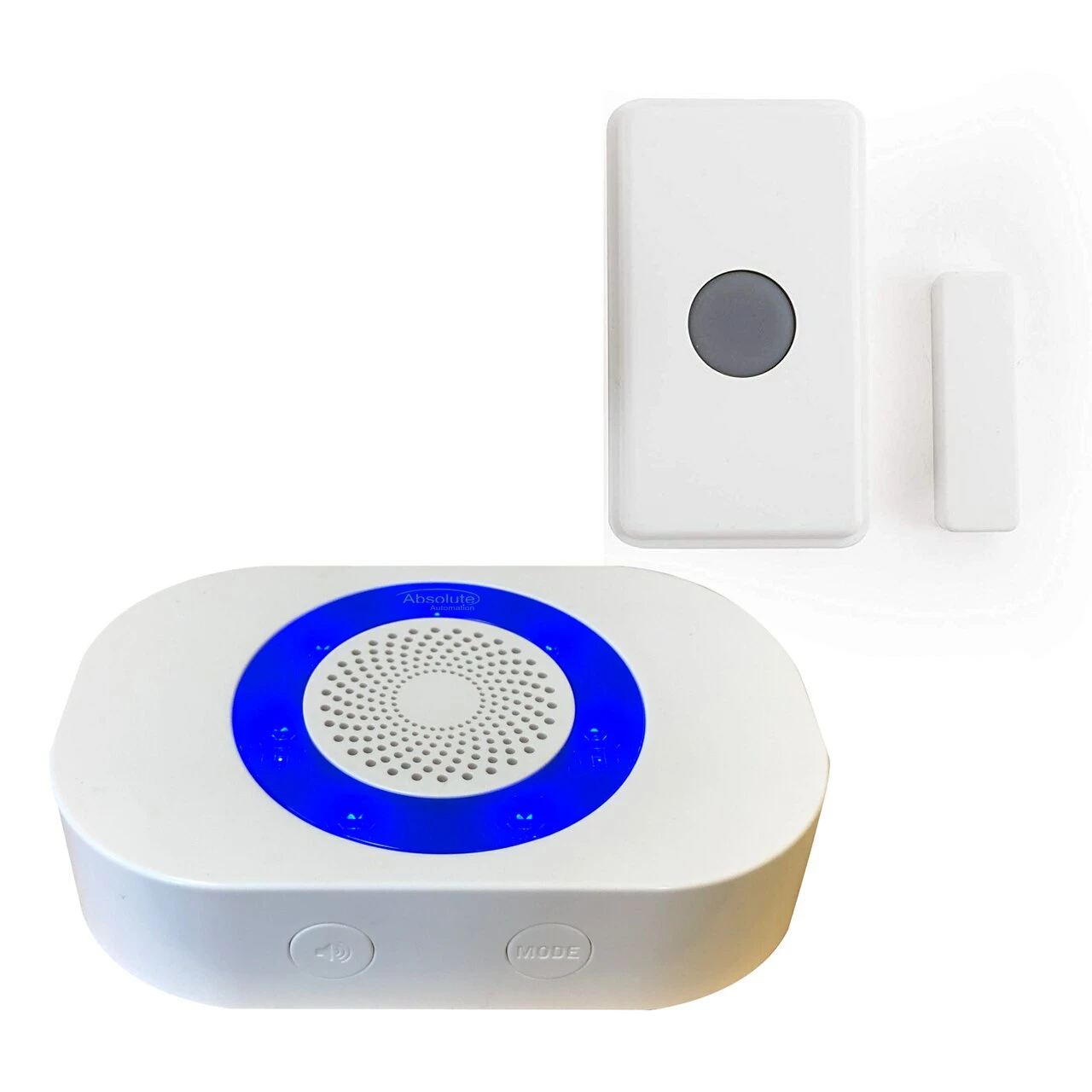

Dakota Alert UTRE-4K-PLUS Long Range Wireless Doorbell with Visual Indicator LED

The Dakota Alert Long Range Wireless Push button and Door/Window Sensor can be used in three different modes:

1. Wireless Doorbell Button – In this mode, the doorbell button is mounted where needed
2. Wireless Door Windows Open Sensor – in this mode the included magnetic sensor is mounted on a door or window to detect when it has opened
3. Wireless Universal Transmitter – in this mode there is an input on the wireless transmitter that accepts a “contact closure”

In any of these modes, when triggered, a wireless signal is sent to the wireless receiver where the LED light will flash and your choice of tunes/tones will be played. With a wireless range of up to 1 mile* this wireless system can be used in homes, schools, small businesses, farms and more.

The outdoor doorbell button is completely weatherproof and has a soft push button.

The indoor receiver has a built in visual indicator LED which makes it great for hearing impaired. Add multiple DCR4000 receivers where needed to provide additional visual notification.

The included UT4000 button transmitter operates on a 3-volt lithium battery (included) and can be easily mounted to a door frame or wall.

The included Dakota 4000 Plus receiver has two form C relay outputs and a 12VDC relay output that can be activated when one of the sensors are triggered. This allows the receive to be connected to an external siren, strobe light or to an alarm or automation system. The relay and voltage outputs can be set to trigger for 1 second, 5 seconds, 15 seconds, or 5 minutes when a sensor is activated. Each sensor can have its own turn and it’s own activation time.

Dakota Alert UTRE-4K-PLUS Long Range Wireless Doorbell Specifications

Wireless Doorbell Specifications

• Can be activated using push button or terminal inputs (N/O or N/C)
• Frequency: 433.92 MHz
• 256 Code Combinations
• Battery required: 3 Volt Lithium (included)
• Wireless Range: Up to 1 Mile*
• Weather Resistant (suitable for outdoor use)
• Built in Magnetic Reed Switch and included magnet for doors and windows, closets, cupboards or drawers

Doorbell Chime Specifications

• Four Different Chimes Tones
• Volume Control
• LED Reminder Lights
• Operating Voltage – 12VDC – Power Supply Included
• 2 x Form C relay outputs (normally open and normally closed) rated up to 3A
• 1 x 12 VDC output rated 400 mA maximum
• Relay rating: 24VDC at 3 Amp
• Frequency – 433.92 MHz

*Line of Sight

Dakota Alert UTRE-4K-PLUS Long Range Doorbell Includes

• 1 x Dakota Alert UT4000 Transmitter with battery
• 1 x Dakota Alert RE-4K-PLUS Wireless Receiver
• 1 x Plug in power supply for receiver

RE-4K-PLUS User Guide

*Wireless range is direct line of sight without interference. Actual range will be reduced by interference and structures.
