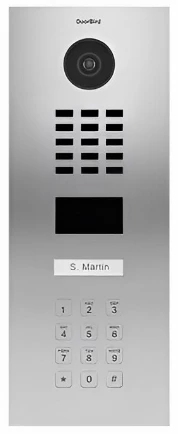

DoorBird D2101KV IP Video Door Station, 1 Call Button, Keypad, Stainless Steel

The Doorbird D2101KV video entryphone allows users to see and speak to anyone who rings the doorbell, at any time and at any distance thanks to the built-in IP camera, directly to their smartphone or tablet. Family members can use the built-in RFID as a door key. The new model features one call button and a multifunctional keypad, making it well-suited for single-family homes, hotels, and commercial spaces that require a safe and efficient access control solution, according to the company.

Doorbird D2101KV IP Video Door Station Features:

• Automatic door buzzer
• Free visitor history
• Individual action schedules
• Geofencing
• Night vision
• HDTV Video
• Motion sensor with 4D technology
• Two freely configurable bi-stable switching relays
• RFID reader
• Motion sensor with 4D technology
• Noise reduction and echo cancellation (AEC, ANR)
• Call button
• Info module
• Keypad Module
• Light sensor
• Easy connection to the network
• Microphone

Doorbird D2101KV  IP Video Door Station Specifications:

General

• Front panel: 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and V4A with bronze and titanium finish, DB 703, RAL 7016
• Mounting housing (backbox): Stainless steel
• Mounting type: Flush-mounted, surface-mounting housing sold separately
• Power supply:15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
• Call button: Illuminated
• Keypad Module: 12 keys, illuminated, configurable via App, e.g.

• Individual PIN codes
• Individual events (e.g. switch a relay, HTTP(s) request)
• Individual schedules
• Up to 100 PIN codes are manageable
• 30 most recent entries viewable in history

• Weight: 2040g
• Weather-proof: Yes, IP65
• Approvals IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 62471
• Dimensions: 351,5 x 131 x 49,6 mm (H x W x D) 13.84 x 5.16 x 1.95 in (H x W x D)
• Operating conditions: -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)

Requirements

• Required system:
• Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
• Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
• Network: Ethernet Network, with DHCP
• Recommended mounting height: The camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height.

 Video

• Camera: HDTV 720p, dynamic (VGA – HDTV)
• Objective: High-end ultra wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable
• Night vision: Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm)

 Audio

• Audio components: Speaker and microphone, noise reduction, and echo cancellation (ANR, AEC)
• Audio streaming: Two-way, full duplex

 Motion sensor

• Type: Active
• Detection angle: 54° (H), 70° (V)
• Range: 1 – 10 m (3.3 – 32.9 ft), depending on the environment, configurable in 1 m (3.3 ft) steps.
• Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
• Configuration: Via the app, e.g.
• Range (1 – 10 m / 3.3 – 32.9 ft)
• Movement direction (coming, leaving, both)
• Individual events (e.g. switch a relay, push notification, SIP call , HTTP(s) notification)
• Individual schedules

 RFID

• Type: Active Reader Passive Tag (ARPT) system
• Standard: ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
• Frequency: 125 KHz
• Range 0 – 3 cm, depending on the environment
• Antenna: Internal
• Compatible transponder: RFID key fobs
• Configuration: Via the app, e.g.
• Via App, e.g.
•  Tag (add, delete)
•  Individual events (e.g. switch a relay, SIP call , HTTP(s) notification) •
• Individual schedules
•  RFID history available for 60 minutes in the app

Built-in wireless module

• RFID: 125 KHz
• Sensor: 24 GHz, can be disabled

Special remarks: Assembly requires professional skills or a technician.
