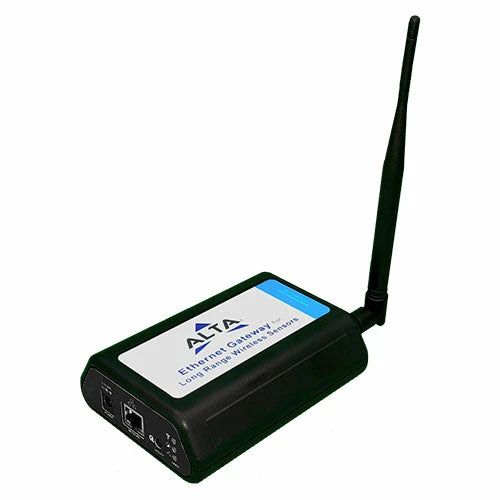

Monnit ALTA Ethernet Gateway V4, 900MHZ

Monnit’s Ethernet Gateways allow your Monnit Wireless Sensors to communicate with the iMonnit™ Online Wireless Sensor Monitoring and Notification System without the need for a PC.

Simply provide power and plug the gateway into an open Ethernet network port with an internet connection. It will then automatically connect with our online servers, providing the perfect solution for commercial locations where there is an active internet connection.

*If you plan to use and alternative interface to the sensors other than iMonnit.com (such as Modbus TCP, SNMP, the direct push of data from gateway to on-premise or 3rd party server, the purchase of an unlock code will allow free roaming of the data from the hardware.

Ethernet Gateway Datasheet
Ethernet Gateway QuickStart
Ethernet Gateway Manual

Monnit MNG2-9-EGW-CCE Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Ethernet Gateway Specifications

Hardware: 10/100 Ethernet Controller

IEEE Standard Compliance: 802.3 – 2002

Operation: Full – and Half-Duplex

Cross-Over Correction: Automatic MDI/MDI-X

Protocols Supported: DHCP, DNS, NTP, UDP, TCP, SNMP, Modbus TCP

Cable Connector: RJ45

Input Current (no loading): 5.0 VDC @ 1A

LED Lights: Connectivity, Server, Network Status

Device Memory: Up to 50,000 sensor messages; varies based on sensor type. (Sensor messages will be stored in the event of Internet outage and transferred when connection is restored)

ALTA Commercial Gateway Specifications

Dimension: 5.004 x 3.8 x 1.51 in.

Enclosure Material: ABS

LED Lights: Internet Connectivity Status, Server Status, Sensor Network Status

Storage Temperature:: -20 to +60°C (-4 to 140°F)

Operating Temperature: +5 to +45°C (41 to 113°F)

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
