Optex IVision+ Connect IVPC-DS Additional Door Station

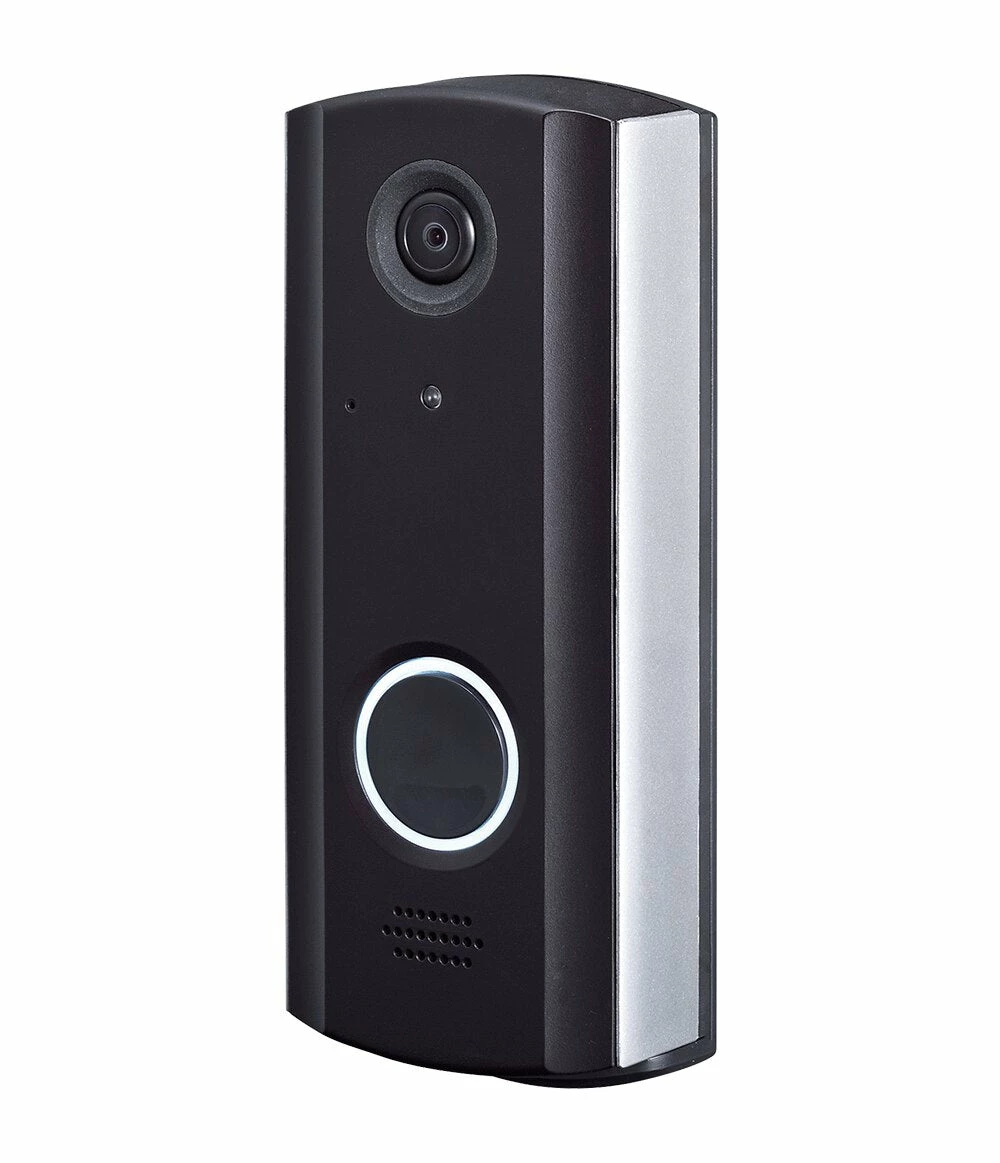

Optex iVision+ Connect IVPC-DS Door Station

Need to monitor or communicate with more than one entrance? Expand your iVision+ Connect system by adding an additional video door station.

The door station can be powered by 10-24V AC or DC or it can be run by the built in rechargeable battery if you can’t run wires. The IVPC-DS uses your WiFi network to communicate with one or more IVPC-MS indoor stations, or use an app on your smart phone or tablet.

* Up to 4 IVPC-DI can be used per IVPC-DS and one can be set to release a door strike, remaining three unis operate as chimes

Optex iVision+ Connect IVPC-DS Door Station Features

• Two way full duplex audio
• Battery powered or hardwired
• Includes rechargeable battery
• IR night vision
• Indoor/Outdoor, IPX5 weatherproof rated

Optex iVision+ Connect IVPC-DS Door Station Specifications

• 720p HD video
• Viewing angle: 135 degrees horizontal, 75 degrees vertical
• WiFi 802.11 b/g/n 2.4GHZ
• Power: 10-24V AC/DC
• Battery life: 2 months or up to 1 year in battery save mode
• Charging time: 10 hours with 5VDC 1A supply
• Operating temperature: -20°C to 50°C (-4°F to 122°F)
• MicroSD card supports: 4 to 32GB

Optex iVision+ Connect IVPC-DS Door Station Includes

• 1 x IVPC-DS Door Station
• 8G MicroSD card
• Rechargeable battery
