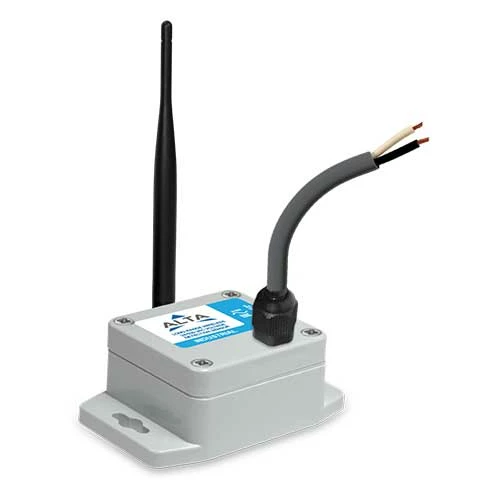

Monnit ALTA Industrial Wireless Voltage Detection, 500 VAC, 900MHZ

The AC Voltage Detection Sensor notifies of the presence or absence of electricity. It is intended for use on devices using supply power from 24 – 500 VAC. Not intended for voltages higher than 500 VAC and also not intended for use with DC sources. Perfect for HVAC systems, sprinkler systems, sump pumps and any other type of electrical appliance monitoring. This sensor triggers on the state change from presence to absence of voltage and vice versa. The data is displayed as either “No Voltage” or “Voltage Detected”.

Monnit MNS2-9-IN-VD-AC Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Voltage Detection Sensor Specifications

Absolute Maximum Voltage: 600 VACrms / 850 VDC

Minimum Voltage Detected: -850 VDC

Accuracy: +/- (1 VACrms + 3% of reading)

Calibrated Accuracy with Appropriate Offset: +/- (.5 VACrms + 1.5% of reading)

Response Time: 40 ms

Supported Operation Modes: VACrms (root mean squared) Peak Voltage DC Voltage

Resolution: .25 VACrms / .35 VDC/Peak Voltage

Lead Wire Length: 2 Wires, 1 ft (12 in), Black (Hot), White (Neutral), 18 AWG (Custom lengths available upon request.)

Variation Specifications

Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)

Weight: 4.9 oz. (139 g.)

ALTA Industrial Specifications

Supply Voltage: 2.0 – 3.8 VDC

Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)

Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.**

Max Operating Temperature: -40° to 85°C (-40° to 185°F)

Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)

Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles – 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F)

Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure

UL Rating: UL Listed to UL508-4x specifications (File E194432)

Dimension: 3.7 in x 2.32 in x 1.38 in

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
