Seco Larm Seco-Larm E-922CPQ Enforcer Telephone Dialer With Listen-In And Remote Relay Control

Enforcer E-922CPQ Alarm Telephone Dialer with Listen-In and Remote Relay Control

The Seco-Larm Enforcer E-922CPQ is flexible voice dialer with listen-in and remotely controlled relay output.  It uses a land line phone connection making it easy to use, secure and Internet free.

It can be used with a security system, driveway alarm or automation system to call up to 6 phone numbers when triggered and play a custom voice alert message.

The built-in relay can be remotely controlled by the recipient or by dialing in to the E-922CPQ on demand.

The recipient can choose to listen in to the room when they receive a call, or by calling in to the dialer remotely at any time.

• 3 separate trigger inputs
• 1 remote controllable relay
• Calls up to 6 numbers
• Custom voice recordings
• Built-in microphone for remote listen-in

The Enforcer dialer has three inputs that can be programmed as NO, NC, Hi or Low input.  When triggered, the dialer will call out and play your recording.  You can record a base message plus an individual 6 second messages for each input.

The dialer requires 10~18 VDC power.  The power supply is NOT included as it may be used by some systems that provide their own power.  If needed, a separate 12VDC power supply with at least 300 mA can be purchased separately.

Seco-Larm E-922CPQ Telephone Dialer Features

• Alarm telephone dialer with custom recordable voice messages
• 3 individual trigger inputs
• Custom message per trigger
• Inputs can be programmed as NO, NC, Hi or Low
• Connects to POTS landline phone connection for dial out and in.  Compatible with most VOIP based systems
• Call up to 6 numbers when triggered
• Built-in microphone for listen-In
• Listen-in when called, or user may dial in to listen
• 4 digit PIN for security
• On board Form C NO/NC relay can be controlled remotely by telephone
• Relay supports 1-255 sec latching when triggered
• Requires 10-18VDC power 250mA minimum or higher
• Touch Tone and Pulse Dialing supported
• Operating Temperature – 32º to +140º F (0º to 60º C)

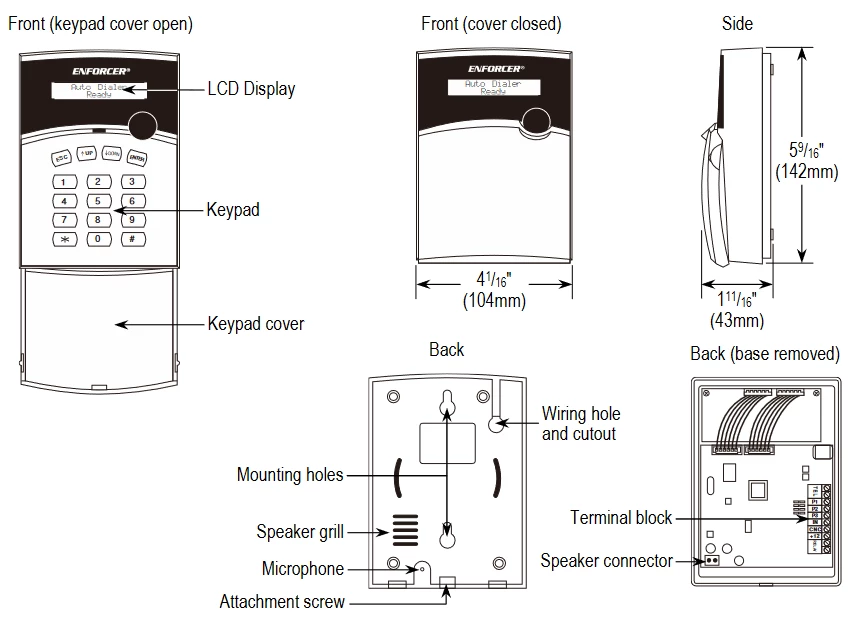

• Dimensions – 4 1/16 x 5 9/16 x 1 11/16 (104x142x43mm)

Enforcer Voice Dialer Includes

• 1 x Enforcer E-922CPQ Dialer

Enforcer Telephone Dialer – Downloads

Enforcer E-922CPQ  Manual
Enforcer E-922CPQ Datasheet
