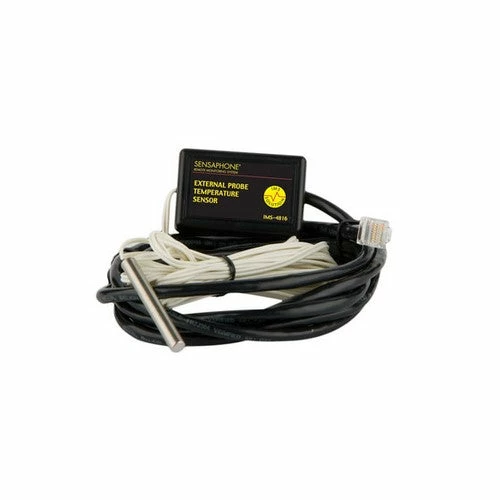

Sensaphone IMS Temperature Sensor With External Probe

This sensor is designed to connect to the Sensaphone IMS product line and monitor temperatures in areas where a traditional sensor won’t fit. The electrical connection between the sensor and IMS unit is made via the attached RJ-45 patch cable. The sensor probe may be secured inside equipment using the included clamp or it may be hung using tie wraps.

Product Specifications:

• Name: Temperature Sensor in Glass Bead Vial
• Sensor Temperature Range: -122° to 53°F | -86° to 12°C
• Accuracy: ± 3°F | ±1.7°C
• Connection: RJ45
• Housing: HDPE Plastic
• Dimensions: Bottle: 2.8 x 1.6” | 72mm x 40mm | Enclosure: 2.1 x 1.3 x .6” | 53 x 33 x 15mm
• Sensor Series: IMS Solution
• Notes: Available with NIST Certification
