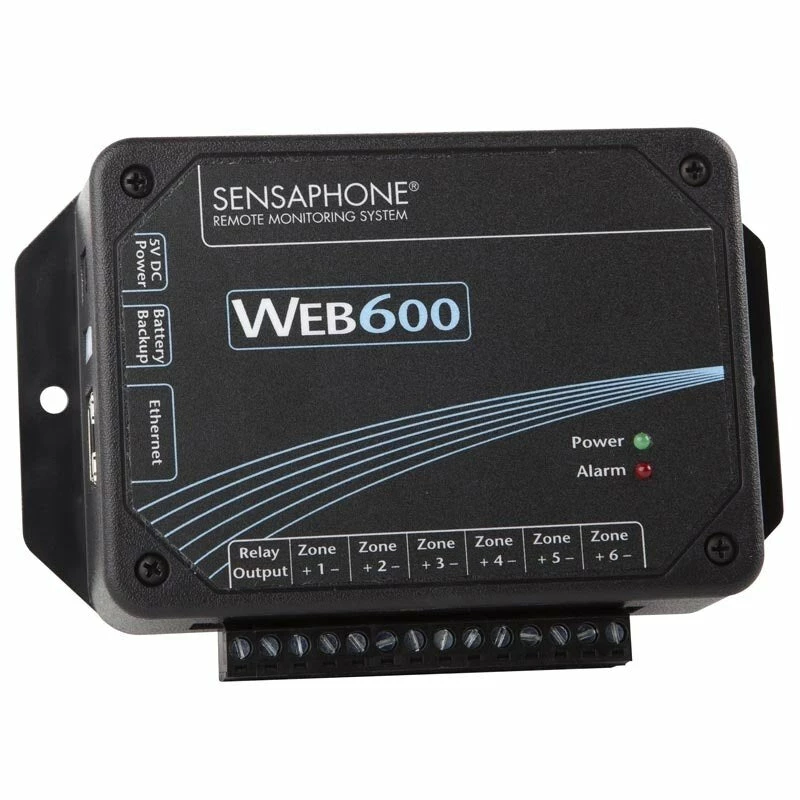

Sensaphone WEB600 Self Contained Sensor Monitoring, Logging, Email Alerts

Sensaphone WEB600 Stand Along Sensor Monitoring and Data Logging

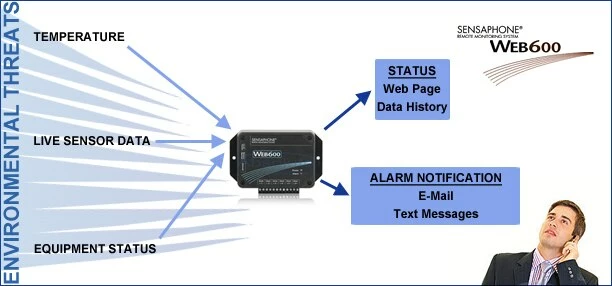

The Sensaphone WEB 600 is a powerful but affordable stand alone web based alarm and monitoring system which can log data and notify users to alarm conditions via email, text message, and SNMP traps.

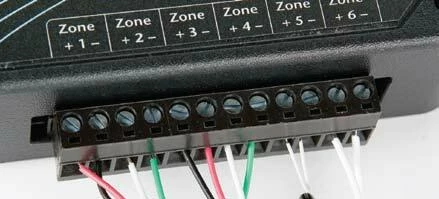

Six zone inputs allow for connection of normally open, normally closed, 2.8K or 10K thermisters and 4-20mA sensors.  The WEB600 also has built in power failure monitoring.

The optional W610 battery back-up is recommended for all installations and required for power failure monitoring.

As a stand alone network connected unit, there are no set up or monthly fees. As a data logger, up to 100,000 samples can be stored with date, time and data for reporting purposes. Keep track of conditions like refrigerator or freezer temperatures and generate a report to ensure your equipment is operating within range and the contents are safely stored.

The WEB600 provides flexible web-based remote monitoring and notification at an affordable price. Up to 32 users can be notified by email or text messages as soon as conditions exceed the normal range set by the administrator for each input.

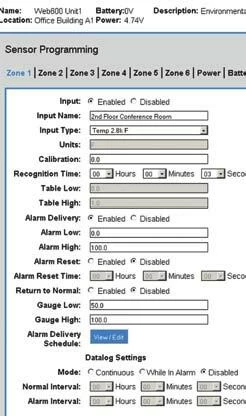

A built in web server allows direct connection via web browser for monitoring and programming.

Completely standalone and easy to use, the FGDW600 can be used for monitoring cold food storage, medical cold storage, and other temperature sensitive areas like computer rooms and data centers. In addition to temperature monitoring, the Web600 can also read values from humidity sensors, air quality sensors, water leak sensors and much more.

An optional external rechargeable battery backup is available to ensure maximum uptime in case of a power outage. The Web600 includes power failure monitoring and reporting as well.

WEB600 Specifications

Alarm Notification Methods

• Email, Text Message, SNMP Traps
• Eight (8) Alarm Escalation levels
• Can schedule each input, profile and alarm destination

Data logging

• 32,000 Samples (all samples include data date and time)
• 1 second to 1-month sampling rate
• User programmable channel selection
• Zones 1 – 6
• Battery
• Input Power

Local indicators

• Alarm Status LED
• Power Status LED
• Ethernet link and Activity LED’s

Destinations

• Eight (8) Programmable User Profiles
• Four (4) Programmable alarm destination per profile

Inputs/Outputs

• 6 Universal inputs – Normally Closed/ Normally Open Dry Contact, 2.8K/ 10K Thermistor, 4-20mA Current Loop
• 12 Bit Resolution
• 1 Normally Open Relay Output – Rated for 1A 30VDC

Operating conditions

• 0-90% RH, non condensing
• 0-50°C (32122°F)

Operating conditions

• 0-90% RH, non condensing
• 0-50°C (32122°F)

Physical properties

• 5.5″ x 3.25″ x 1.25″
• 0.5lbs

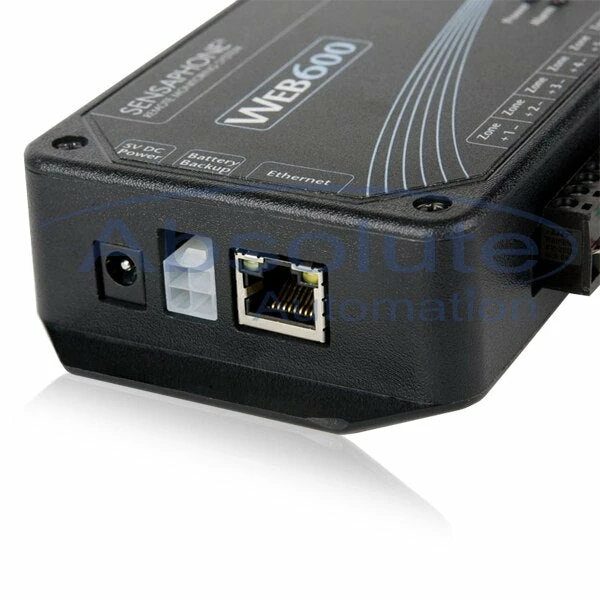

Communication Ports

• Ethernet 10/100BaseT

WEB600 Includes

• 1 x WEB600



WEB600 – Support

• WEB-600 – Manual
